PUBLIC WORKS NOTEX® PAV
NOTEX® PAV - Anti-reflective cracking - road repair
Use
The behavior of pavements changes according to the dynamic stresses and climatic variations to which they are subjected. NOTEX® PAV geocomposite reinforcement provides an effective, long-lasting solution for slowing the progression of phenomena such as crack growth and premature aging of pavements:

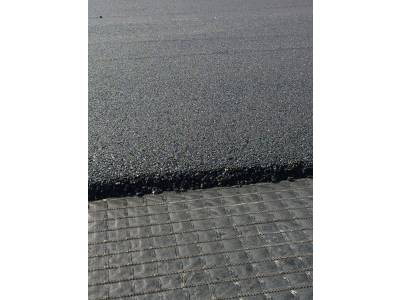

- Rehabilitation of roads, platforms and tracks
- Construction of new pavements
- Widening works

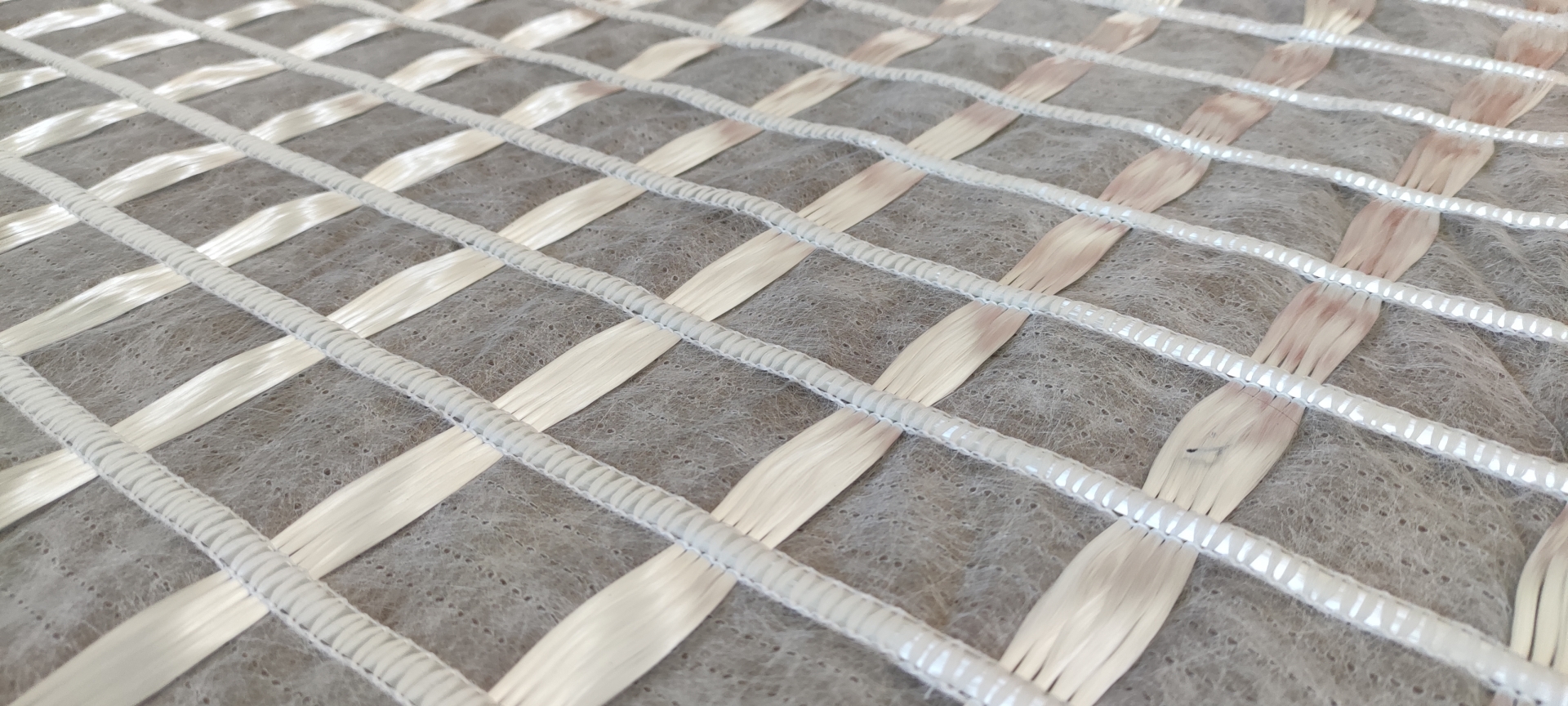

NOTEX® PAV blocks the upward movement of cracks thanks to its high tensile strength and positioning as close as possible to the area at risk. This product is bi-directional, i.e. it offers tensile strength in both directions of manufacture. The high strength andreinforcement performance of NOTEX® PAV geogrids is achieved thanks to the combination of glass cord and polyester fleece.
Benefits
- Limits deformation of the asphalt.
- Delays the appearance of cracks.
- Optimum bonding with the emulsion thanks to the non-woven polyester geotextile associated with the grid.
- Possibility of pre-impregnating the grid with polymer impregnation to limit the amount of modified emulsion required on site.
- Performance validated by experience and laboratory tests, extending the service life of road structures.
- Easy-to-install product.
Features

Characteristics
- Polyester reinforcement geocomposite with polymeric impregnation option (reinforcement function) and polyester non-woven geotextile (fixing function).
- Strength from 50 kN/m to 200 kN/m in each direction.
- Standard roll dimensions: 1 to 5.30 m x 100 m.
- Standard opening: 40 x 40 mm.
- On request, grid opening 25 x 25 mm.
- Fiberglass with less than 10% deformation at break.
