Mining engineering

MINING ENGINEERING DRAINTUBE FT

DRAINTUBE FT - Base of heap leach pads

ASQUAL Draintube FT
DRAINTUBE logo
Marquage CE

Use

When draining leachates as part of metal extraction operations in leach pads, DRAINTUBE® FT provides a suitable solution for a full and timely collection as well as the disposal of metal-rich solutions. Once contained, DRAINTUBE® FT is capable of withstanding very high compressive stress, even at high temperatures.

The design of leach pads in heaps meets strict environmental requirements in terms of stability and insulation. DRAINTUBE® FT is therefore a first-class technical alternative to collect leachates and protect waterproofing barriers. In addition to being low-cost and very easy to implement, it has a better impact on the environment as it replaces granular layers, and reduces or eliminates the transport of these resources.

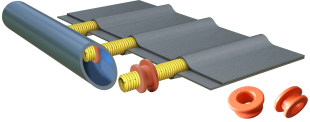

Connection to the collector via the Quick Connect system

The Quick Connect system directly connects the mini-drains from the DRAINTUBE® FT to the main collector drain. In the event of gas drainage, it generates negative pressure in the entire system.





Benefits

  • Drainage under heavy stress
  • Improved collection system and hydraulic load reduction
  • Reduced number of secondary collectors
  • Mechanical protection of the geomembrane
  • Tried and tested stability under extreme conditions
  • Ease of installation with a single product to unroll
  • Cost-effective and environmentally friendly solution as it replaces granular layers

Features

Drainage Drainage
Filtration Filtration
Mechanical protection Mechanical protection

Characteristics

  • Polypropylene geocomposite
  • Roll width : 3.90 m
  • Roll length : 50 m
  • 3 diameters of perforated mini-drains : 16 mm, 20 mm and 25 mm
  • 4 possible distances between mini-drains : 200 cm, 100 cm, 50 cm and 25 cm
